Technical specifications
The physical, electrical and network details your facilities, engineering and IT teams need to plan for an IntelliScience Appliance.
Size
- Exterior dimensions
- 21 in wide × 32 in tall × 24 in deep (53 × 81 × 61 cm)

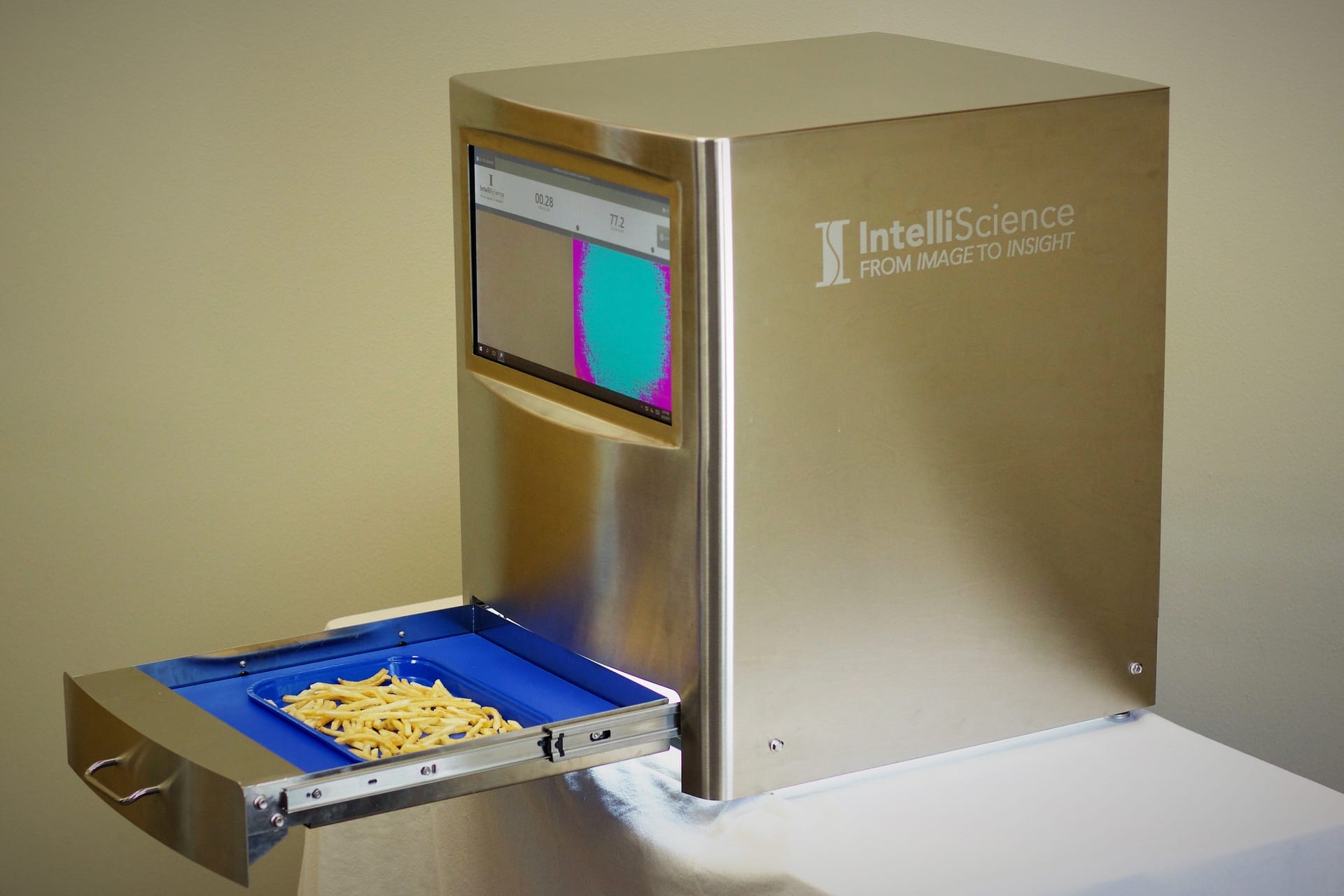

- Installation
- Countertop or lab bench. No line integration required.
Power
- Electrical
- 120/240 V AC, 50–60 Hz
Connectivity & software
- Network
- Ethernet (RJ-45)
- USB
- Three external USB ports for connectivity and expansion
- Operating system
- Microsoft Windows 11 Enterprise LTSC
- Online or offline
- Runs online, connected to your own IT systems or the secure IntelliScience portal, or fully offline with no external database.
- Image export
- Exports sample imagery to a network file share
Imaging
- Camera
- 3CCD progressive-scan camera with three 1/3-inch, 1024 × 768 CCD sensors
- Lighting
- LED diffuse panel
- Scoring
- Each sample is scored from the metrics the appliance measures
Sampling
- Sample tray
- Removable, 9 × 6.5 in (23 × 16.5 cm)
- Sample depth
- 1–2 in (2.5–5 cm)
- Larger samples
- Add a tray combines several trays into one result
Operation
- Screen
- 19-inch wide-aspect, high-resolution touchscreen
- Controls
- Built-in, glove-compatible touchscreen. A USB keyboard and mouse are optional.
Calibration
- Verification
- Includes a calibration card and software to verify the appliance is operating correctly
Expansion
- Conveyor
- Optional 6 ft 6 in (2 m) table-top conveyor for higher-volume sampling
